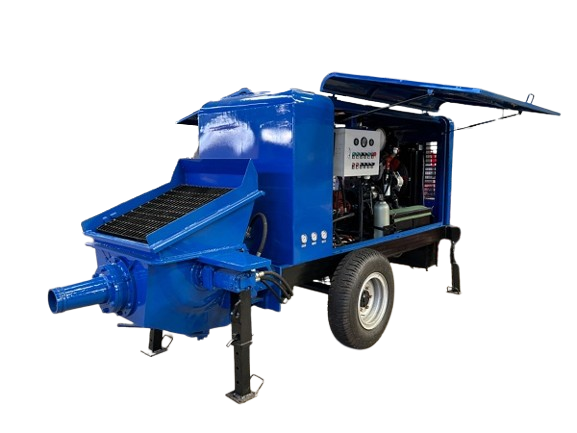

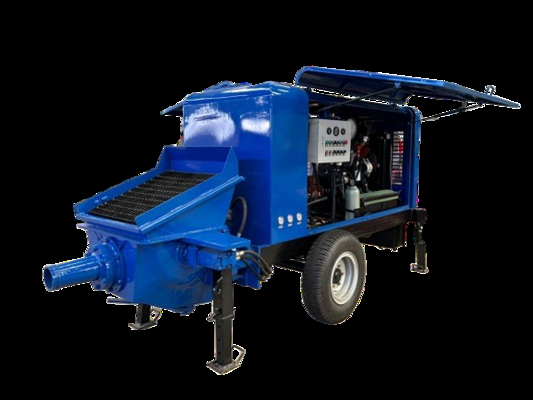

Trailer Concrete Pump Suitable For Long Distance Concrete Conveying In Large Scale Engineering Projects
When it comes to concrete spraying tasks in construction, infrastructure, and more, having a machine that combines power, efficiency, and durability is essential. Our concrete shotcrete spray is engineered to meet these demands, ensuring smooth operations and excellent results.
Core Performance Specifications
| Parameter |
Unit |
Specification |
| Max. Shotcrete Capacity |
m³ |
8 |
| Max. Theoretical Concrete Output |
m³/h |
30 |
| Max. Shotcrete Aggregate Size |
mm |
15 |
| Maximum Allowable Aggregate Size |
mm |
≤30 |
| Concrete Slump |
mm |
120 - 230 |
| Hose Inner Diameter |
mm |
57/64 |
| Max. Shotcrete Distance |
m |
100 |
| Max. Concrete Outlet Pressure |
Mpa |
10 |
| Max. Theoretical Conveying Distance (Horizontal/Vertical) |
m |
500/150 |
Power & Components
| Parameter |
Detail |
| Motor Power |
65kw |
| Main Oil Pump |
Kawasaki |
| Hydraulic Valve |
Bosen |
| Hydraulic Hose |
Manuli |
| PLC Control System |
Mitsubishi |
Capacity & Dimensions
| Parameter |
Unit |
Specification |
| Oil Tank Capacity |
L |
200 |
| Hopper Capacity |
m³ |
0.35 |
| Filling Height |
mm |
1300 |
| Conveying Cylinder Diameter |
mm |
100/1000 |
| Concrete Cylinder Diameter |
mm |
160/1000 |
| Speed |
r/min |
2200 |
| Overall Dimension (L×W×H) |
mm |
5100×1550×1750 |
| Total Weight |
kg |
3500 |
Key Advantages
Efficient Concrete Delivery: Boasts a max theoretical concrete output of 30 m³/h and can handle a max shotcrete capacity of 8 m³, ensuring swift progress on projects.
Versatile Aggregate Handling: Capable of dealing with aggregate sizes up to 30 mm and a concrete slump ranging from 120 - 230 mm, making it suitable for various concrete mixes.
Long-Distance Conveying: Achieves a max theoretical conveying distance of 500 m horizontally and 150 m vertically, as well as a max shotcrete distance of 100 m, ideal for large-scale or hard-to-reach projects.
Durable Components: Equipped with top-tier parts like Kawasaki main oil pump, Bosen hydraulic valve, Manuli hydraulic hose, and Mitsubishi PLC control for stable and long-lasting operation.
Easy Maintenance: Features a water washing pipe cleaning mode for hassle-free post-operation care, while the 0.35 m³ hopper and 200 L oil tank minimize interruptions for refueling or reloading.
Practical Terms
Quotation Validity: The quotation remains valid for 7 working days.
Delivery Time: We ensure delivery within 15 days after deposit confirmation.
Packaging: Comes with standard export packaging; customization as per your requirements is available.
Payment Terms: 30% deposit via T/T, with the balance paid before shipment.
