Detail Information

Power Supply:	Diesel Engine	Max. Theoretical Conveying Distance:	Horizontal 500m / Vertical 150m
Max.Theoretical Concrete Output:	30 M³/h	Conveying Cylinder Diameter:	100/1000 Mm
Concrete Cylinder Diameter:	160/1000 Mm	Motor Power:	65kw
Oil Tank Capacity:	200 L	Pipe Cleaning Mode:	Water Washing
Overall Dimension:	5100×1550×1750 Mm	Total Weight:	3500 Kg
Highlight:	High Efficiency Conveying trailer concrete pump , Long Distance Pumping trailer concrete pump , Durable Components trailer concrete pump

Product Description

Durable Trailer Concrete Pump For Smooth And Operations In Construction And Infrastructure Projects

Our Trailer Concrete Pump is designed to deliver powerful, efficient, and reliable concrete conveying for demanding construction and infrastructure projects. With advanced hydraulic technology, premium components, and versatile performance, it ensures smooth operations on site while saving both time and labor.

Core Features & Performance

High Efficiency Output: Max. theoretical concrete output of 30 m³/h, ensuring fast and continuous supply for large projects.
Versatile Concrete Handling: Handles aggregate sizes up to 30 mm with slump range from 120 – 230 mm, adaptable to different concrete mixes.
Long Distance Conveying: Reaches up to 500 m horizontally and 150 m vertically, making it suitable for high-rise buildings, tunnels, and remote pouring areas.
Durable & Reliable: Equipped with Kawasaki main oil pump, Bosen hydraulic valve, Manuli hoses, and Mitsubishi PLC control system for stable and long-lasting performance.
Easy Maintenance: Water washing pipe cleaning system, 0.35 m³ hopper, and 200 L oil tank minimize downtime and simplify daily operation.

Technical Specifications

Parameter	Specification
Max. Shotcrete Capacity	8 m³
Max. Theoretical Concrete Output	30 m³/h
Max. Aggregate Size	≤30 mm
Concrete Slump	120 – 230 mm
Max. Conveying Distance	500 m (Horizontal) / 150 m (Vertical)
Max. Shotcrete Distance	100 m
Outlet Pressure	10 Mpa
Motor Power	65 kW
Hopper Capacity	0.35 m³
Oil Tank Capacity	200 L
Overall Dimensions (L×W×H)	5100×1550×1750 mm
Total Weight	3500 kg

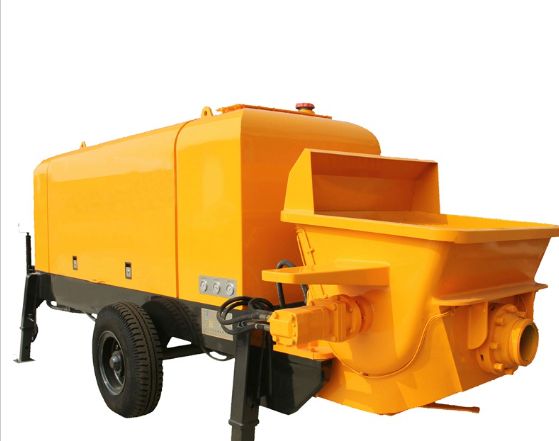

Durable Trailer Concrete Pump Smooth Operations In Construction Infrastructure Projects 0

Applications

Infrastructure Construction: Bridges, highways, and tunnels.
Commercial & Residential Projects: High-rise buildings, foundations, and floor slabs.
Mining & Slope Protection: Shotcrete for underground support and soil stabilization.

Why Choose Our Concrete Pump

High efficiency for large-scale concrete conveying.
Reliable components for stable, long-term use.
Flexible applications for both pumping and shotcreting.
Fast delivery and customized packaging available.

Order & Delivery Terms

Quotation Validity: 7 working days.
Delivery Time: 15 days after deposit confirmation.
Packaging: Standard export package (custom options available).
Payment Terms: 30% deposit via T/T, balance before shipment.
